Modular terrain is one of the most satisfying things you can print on an FDM machine. A dungeon that assembles on the fly, a ruin that reconfigures per scenario, a set of interlocking tiles that stores flat and builds tall. The idea is straightforward. The execution has a few decisions that are easy to get wrong, and getting them wrong early means 30 hours of printing that does not fit together.

This article walks through the full workflow: picking a standard, sourcing files, preparing them in the slicer, printing in batches, and ending up with a set that works.

What modular terrain actually means

Modular terrain comes in two broad categories. The first is tile-based: flat or low-profile pieces that lay down a room, corridor, or outdoor space and interlock at the edges. The second is clip-based or magnet-based: pieces that lock vertically as well as horizontally, building walls and towers rather than just floors.

The two dominant systems you will encounter are OpenLOCK and OpenForge. OpenLOCK uses a proprietary clip geometry embedded in the base of each piece. Two OpenLOCK pieces snap together and stay locked until deliberately released. The clip is part of the geometry, which means any creator who designs to the OpenLOCK spec produces pieces that work with any other creator’s OpenLOCK pieces. OpenForge takes a more open approach: pieces use a standardised base footprint but rely on magnets or simple flat stacking rather than a mechanical clip. That makes it easier to mix with custom bases and more flexible in layout, but less positively locked together.

There are also hexagonal systems for outdoor terrain, favoured by wargamers who want flexible battlefield tiles rather than dungeon rooms. These are a third category, not compatible with OpenLOCK or OpenForge.

The critical point: mixing standards is the source of most frustration in modular terrain projects. A pack designed for OpenLOCK will not clip into an OpenForge base. Buy or subscribe to one creator’s range and commit to it for a full set before expanding.

Where the files come from

The modular terrain ecosystem is primarily creator-supported, not retail. The main distribution channels in 2026 are:

MyMiniFactory Tribes — subscription packs from established creators. Good for ongoing sets with consistent theming and regular additions. The Tribes model means you pay monthly and download as much of the back catalogue as you want.

Patreon — most active modular terrain creators offer their files here. Some operate as ongoing subscriptions; others run as one-off purchases. The Devon Jones OpenForge set has been one of the most downloaded free dungeon tile collections across multiple platforms.

DriveThruRPG — individual packs for one-time purchases. Good for a specific set (a graveyard, a ship, a desert ruin) without a subscription commitment.

Cults3D and Thingiverse — free and paid files from individual designers. Quality varies widely. The free section is genuinely useful for filler tiles and generic wall sections; premium packs from established designers are more reliable for consistency.

The recommendation is to pick one creator whose aesthetic fits your game and buy or subscribe to one range rather than mixing six free packs from six different sources. The packs will not match in height, clip geometry, or visual style, and you will spend more time fitting pieces than printing them.

Picking the standard before printing anything

This is the single most important decision in a modular terrain project. Make it before you print a single piece.

OpenLOCK is the right choice if your priority is fast dungeon assembly. Pieces click together and stay together during play. There is no need to tape tiles or worry about the set shifting when a player leans over the table. The range of compatible creators is large.

OpenForge (magnet-base or open-base) is the right choice if you want more flexibility in how pieces connect. It works well with a magnetic play surface or foam-inlaid storage box. The magnet-base variant pairs naturally with the magnetising workflow described in magnetising FDM printed terrain.

Hexagonal tiles are the right choice for outdoor encounters: battlefields, forest clearings, coastal terrain. They do not work for indoor dungeon layouts.

Pick one. Commit.

File prep in the slicer

Most modular STL packs from professional creators ship pre-oriented for FDM. The floor tiles come flat-side down. The walls come on their widest face. The orientation is deliberate and correct for the print geometry. Do not use the slicer’s auto-orient function on these files. Auto-orient analyses the shape and often rotates pieces onto their smallest footprint to minimise support, which is the wrong choice for interlock geometry that depends on specific layer orientation.

Import the file. Confirm it is sitting on the build plate in the shipped orientation. If a file arrives rotated oddly, check whether the creator’s instructions specify an orientation before correcting it yourself.

For most tile-based terrain, supports are not required. A well-designed modular piece has no overhangs that exceed 45 degrees in the shipped orientation. If the slicer flags support requirements, check whether the piece is oriented correctly before adding supports.

Layer height and wall count per piece type

Modular terrain has natural quality tiers. The floor tiles and plain wall sections are background pieces that exist to frame the scene; the centrepiece arch, the gate, the fountain are the pieces players look at. Print them differently.

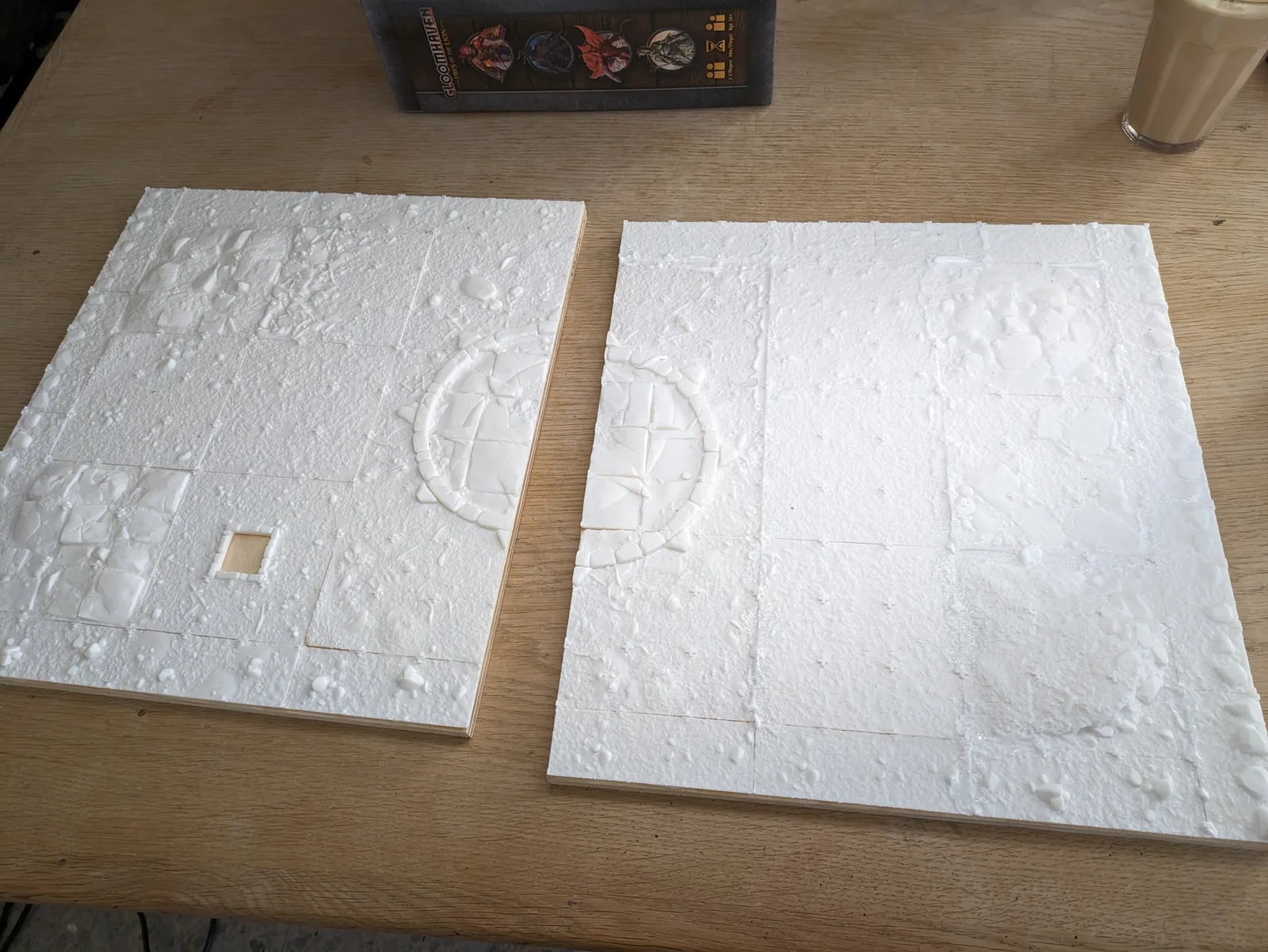

Floor tiles and plain walls: 0.20 mm layer height, three walls. This is the terrain workhorse profile from the FDM slicer settings guide for tabletop terrain. It prints fast, handles well, and looks acceptable once primed. A full dungeon set at 0.20 mm is achievable in a reasonable weekend of printing.

Plain filler blocks: 0.28 mm. Unornamented blocks and rear-facing wall pieces benefit from the speed gain more than they suffer from the coarser surface. Under primer and paint they read identically to the 0.20 mm pieces.

Hero pieces: 0.08 mm, three or four walls, slower outer wall speed. The centrepiece statue, the ornate gate, the altar. These are the pieces players pick up to examine. They are worth the longer print time. Reserve 0.08 mm for pieces that genuinely earn it; a standard dungeon set might have two or three hero pieces among 30 to 40 total tiles.

Wall count on the joining edges is worth one additional wall everywhere it applies. The interlock geometry concentrates stress at the joining face; a fourth wall there improves longevity in a set that gets assembled and broken down repeatedly.

Printing in batches

Batch printing is faster than mixed-piece printing on a per-piece basis and much easier to manage as post-processing. Fill the plate with copies of the same piece type: twelve floor tiles per plate, then eight wall sections, then four corner pieces. Do not mix types on a plate.

Why? First, plates of identical pieces finish at the same time and move to post-processing together. Second, slicer profiles are optimised per piece type. Running a plate of floor tiles at 0.28 mm while also trying to print a hero piece at 0.08 mm on the same plate is not possible. Third, labelling and storage are cleaner when pieces come off the printer in matching sets.

The throughput result is faster than it appears. A plate of twelve floor tiles at 0.20 mm takes a similar time to a plate of four wall sections at 0.20 mm, because the floor tiles are individually fast. Batch planning means you are always running the printer at its effective capacity.

Test-fit before printing the whole set

Print one of each piece type before committing to a full batch. Fit them together. Confirm the clips engage cleanly or the magnet bases sit flush. A set that does not fit together properly is a set you reprint.

The most common fitting problem with FDM modular terrain is dimensional tolerance. FDM printers produce slightly oversize outer dimensions by default, which can make clips too tight or connection points slightly off. Bambu Studio (and OrcaSlicer) has an X-Y compensation setting that contracts outer dimensions slightly. A value of -0.05 mm is the usual starting adjustment for tight clips. Apply it to the test piece, recheck the fit, and confirm before running the full batch.

Do the test-fit with the same filament and same nozzle temperature you intend to use for production printing. Different filaments shrink differently on cooling.

Post-processing modular tiles

Post-processing modular terrain is lighter work than most FDM projects. The main steps:

Brim removal. Pull the brim off by hand, then clean the edge with a hobby knife. Most modular terrain brims come off cleanly in one strip. The base footprint of a modular tile is large enough that brim adhesion is strong.

Support stub trim, if any. On pieces that required supports, a flush cutter removes the stub and a knife cleans the face. Well-designed modular files rarely have supports; this step mostly applies to arched pieces and roof sections.

Interlock-edge deflashing. The clips or joining faces sometimes have a slight extrusion brow where the slicer transitions from wall to infill. A quick pass with a hobby knife flattens this. Do not skip this step; a brow on a joining face prevents the pieces from seating flush.

No sanding is needed for terrain that will receive primer. Primer fills minor surface imperfections, and the textured stone or brick surface of most modular terrain reads better with some surface roughness anyway.

Storage and labelling

A modular terrain set is only useful if you can find the pieces quickly. Storage is as much part of the workflow as printing.

Stackable transparent boxes with labelled inventory lists work well. Print a short inventory per box (lid label, or a printed card inside), noting piece type and count. A dungeon set that packs into three boxes with inventory lists sets up in under 10 minutes. A dungeon set poured loose into a single large box sets up in 45 minutes and is missing three pieces.

Magnetising the bases for foam-tray storage is worth considering for a permanent set. See magnetising FDM printed terrain for the specific workflow. For sets that will be transported regularly, foam trays with magnetised bases are the most damage-resistant storage option.

Painting and finishing a modular set

Painting a modular set as a unified batch is faster and more consistent than painting pieces individually. Primer the whole set in one colour, apply a single drybrush palette across all pieces, and finish with a matt varnish. The uniform treatment is what makes a mixed assortment of tiles read as a coherent set.

Painting technique is outside the scope of what Micron Monster covers in depth right now. For painting guidance specific to terrain, resources from terrain specialists and wargaming communities will serve you better than anything here. The short version: spray primer, drybrush one colour, wash dark, drybrush again lightly. That process works on modular terrain at table distance.

The multicolour AMS approach is also worth knowing about. If you own a Bambu printer with an AMS, you can print tiles with pre-baked colour zoning that reduces the painting workload significantly. See multicolour terrain printing with the AMS for how that workflow fits into a modular terrain project.

The commitment rule

Modular terrain rewards commitment. Commit to one standard, commit to one creator’s range, commit to one primer colour, and the set comes together as a coherent whole. The alternative, mixing six creators and three standards, produces a pile of pieces that almost fit together and does not look like anything in particular once on the table.

The hardest part of modular terrain is not the printing. The printing is easy once the slicer settings are dialled in and the batches are organised. The hard part is the upfront decision about which standard, which creator, and which set to build. Make that decision before you touch the slicer.

For printer recommendations covering the FDM machines best suited to this workflow, the best 3D printer for terrain guide covers the current options. For the Bambu P1P review for tabletop, which covers the machine this workflow was developed on, that article gives the full long-term assessment.

Modular terrain is one of the strongest arguments for owning an FDM printer alongside a resin machine. The build volume, the durability, and the batch throughput are all things resin cannot match. A committed modular set, printed in batches, stored properly, and finished in a unified palette, is a campaign-ready terrain library that improves every game it is used in.
